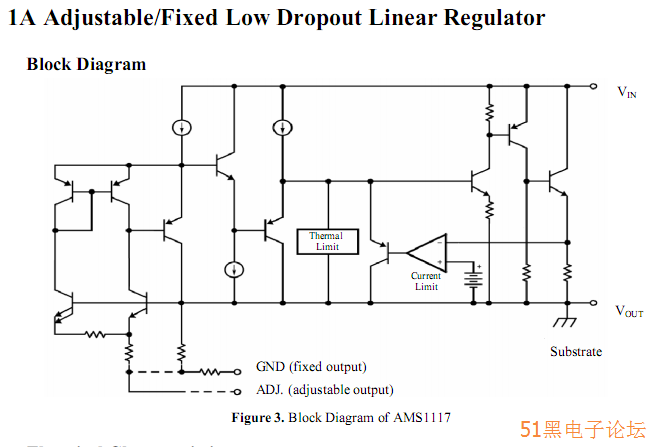

AMS1117-3.0电路图：

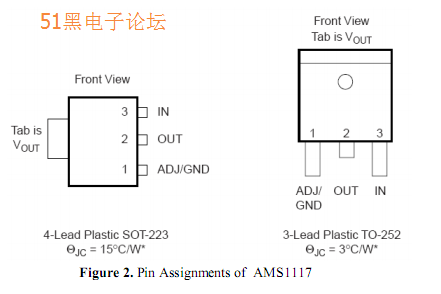

AMS1117-3.0引脚图：
完整的pdf格式文档51黑下载地址：
AMS1117-3.0.pdf
(879.07 KB, 下载次数: 12)
The AMS1117-ADJ and AMS1117-1.2,-1.5,-1.8,-2.5,-2.85,
-3.3 and-5 are low dropout three-terminal regulators with
1A output current capability. These devices have been
optimized for low voltage where transient response and
minimum input voltage are critical. The 2.85V version is
designed specifically to be used in Active Terminators for
SCSI bus.
On-chip thermal limiting provides protection against any
combination of overload and ambient temperatures that
would create excessive junction temperatures.
Unlike PNP type regulators where up to 10% of the output
current is wasted as quiescent current, the quiescent cur-
rent of the AMS1117 flows into the load, increasing effi-
ciency.
The AMS1117 series regulators are available in the indus-
try-standard SOT-223 and TO-252 power packages.
|
